Innovative Ultrasonic Surgery by Söring

Innovative ultrasonic surgery by Söring

Bringing State-of-the-Art Technology into
the Scandinavian Veterinarian Market



It is our pleasure to introduce the expertise and product portfolio of Söring to the Scandinavian Veterinary medicine market.



Human

Söring GmbH has been manufacturing high-end products for ultrasonic surgery for over 35 years for the human medicine segment and is widely used in hospitals all over Scandinavia.

Equine

Since 2019 Söring GmbH has taken a step into the veterinarian field, enabling Equine veterinarians to use ultrasonic technology to improve wound debridement and orthopedic surgery.

Small Animal

The Söring technology has also provided Small Animal veterinarians with new tools for soft tissue surgery using the ultrasonic organ portfolio in cancer and organ indications, on top of the wound debridement, bone, and spine surgery – using the full portfolio of Söring.





Join us in exploring Ultrasonic Technology in the Veterinary Medical field below!

Jump directly to the area of interest or read below



Wound Debridement

Ultrasonic-assisted wound debridement using the cavitation effect removes non-vital tissue, saves vital structures like vessels, and allows working blind.

Jump to Wound debridement

Bone Surgery

Söring UltraSonic-assisted Bone Instrument – can be fitted with different sonotrodes to gently and effectively remove bone tissue without damaging vital soft tissue.

Jump to Bone Surgery

Tumor & Organ Surgery

Ultrasonic technology for gentle, precise transection with minimal bleeding. this process, solid connective tissue structures of vessels and bile ducts are protected



Ultrasonic Surgery – product overview

The Ultrasonic setup requires the components below.



Generator unit
Cart & foot switch
Instrument with Sonotrode

Söring Ultrasonic Instruments

Ultrasonic-Assisted Wound Debridement (UAW)

Easy handling for veterinarians and veterinarian nurses

With their different sonotrode shapes, the UAW instruments from Söring are specially adapted to the needs of Ultrasonic-Assisted Wound Debridement. Veterinary doctors and specialized veterinary nursing staff can use them in or outside disinfectable treatment rooms, making them a versatile option for the Equine clinic environment. Due to their reprocessability and longevity, UAW instruments meet the requirements for a resource-saving treatment option.

The working frequency of 25 kHz makes UAW instruments attractive in various indications. In addition, their ergonomic design enables precise and fatigue-free work throughout the treatment period.

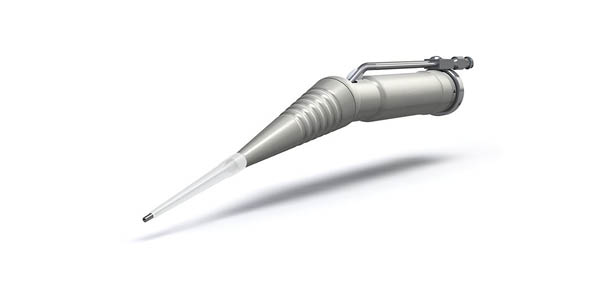

Ultrasonic-Assisted Bone Instrument

Precise on bone, gentle on critical structures

The ultrasonic-assisted bone instrument from Söring was explicitly developed for the resection of bone and offers numerous advantages in spinal and bone surgery, e. g. for decompression procedures. The non-rotating technology allows an exact, delicate, and cooled approach so the surgeon can work closely with critical spinal neurovascular structures such as the dura mater, blood vessels in splint bone, or bone flap surgery. Additional pressure is avoided, which is essential when working in tight spaces. Due to the longitudinal movement of the sonotrode tip, there is also no risk of “grabbing.”

Another great advantage compared to other instruments is that bone can be removed in individual pieces, as it is not ground. Thus, the removed material can be used further for fusion operations. Thereby artificial bone material or bone graft harvesting can be avoided.



HEPACCS instruments for soft tissue tumor surgery

Open and minimally invasive liver and soft tissue tumor surgery

In liver resections and soft tissue tumor surgery, surgeons face the challenge of removing tumors while protecting vessels and bile ducts. The HEPACCS instruments from Söring use both the cavitation and the mechanical effect of ultrasonic technology to reliably fragment, for example, liver parenchyma at 25 kHz. Solid tissue structures of vessels and bile ducts remain largely unscathed. Depending on the tumor’s size, number, and location, resection can be performed in open or laparoscopic surgery.



Söring ultrasonic generators

Simple, intuitive, and for a wide range of medical applications



The SONOCA ultrasonic generators are indispensable for using Söring instruments. Their operation is straightforward: They recognize the ultrasonic instruments, perform an instrument check, and automatically set the appropriate operating parameters and the correct operating frequency of 25 or 35 kHz. In addition, they also undergo an automatic self-test during commissioning so that the user always works with a safe feeling and the surgical team can fully concentrate on the patient.

After a short set-up, the user can start immediately. Thanks to the intuitive user interface, the working parameters can be easily adjusted at any time during the procedure so that the user can react quickly to changed circumstances.

Söring’s ultrasonic generators are used in medical applications ranging from liver and soft tissue tumor surgery, neurosurgery, and spine and bone surgery to Ultrasonic-Assisted Wound Debridement (UAW).

SONOCA 185-FL

Specialist for wound debridement and bone surgery

The SONOCA 185-FL is Söring’s most compact ultrasonic generator and is ideally suited for ultrasound-assisted wound debridement (UAW) and bone dissection.



Sonoca 185-FL: Perfect match for
the following ultrasonic instruments:



Wound Debridement

Bone surgery





SONOCA 300-FL

Specialist for wound debridement, bone surgery, and tumor surgery

Whether for liver, tumor, neuro, spinal surgery, wound debridement, or cutting and coagulation – the SONOCA 300-FL is the efficient specialist for all of Söring’s ultrasonic applications.



Sonoca 300-FL: Perfect match for
the following ultrasonic instruments:



Wound Debridement

Bone Surgery

Organ surgery

HEPACCS instruments for liver and tumor surgery

Ultrasonic Assisted Wound Debridement (UAW)

UAW instruments: versatility for a range of wounds

For optimal treatment results, Söring offers three UAW instruments with unique sonotrode tips optimized for different wounds.



Double-ball sonotrode



Debridement of wound pockets

Double-ball sonotrode, long



Debridement of deep wound pockets

Hoof sonotrode



Ideal for superficial wounds

How does it work?

Effective and gentle wound cleansing

Debridement plays an essential role in the treatment of complex wounds. As part of wound management, it prepares the wound bed to promote rapid and complete healing.

A key facility of the Ultrasonic technology is the ability to debride “blind” on hard-to-reach areas using the short or long version of the double ball instrument.

Ultrasonic-Assisted Wound Debridement (UAW) is a very effective and gentle method for cleansing chronic and acute wounds with a worldwide unique level of evidence. Even hard-to-reach areas can be debrided without an extensive surgical scenario. Wound treatment can be carried out on an outpatient basis and with local anesthesia by a veterinarian or specialized veterinary nursing staff.

In contrast to traditional sharp debridement procedures, the UAW disrupts adhering biofilms 1 and enables the effective removal of devitalized tissue close to healthy tissue. This results in a clean, viable wound bed 2,3,4,5 and a more rapid granulation 5. Antimicrobial therapies 6 and the body’s defense reactions can work better, and the formation of new bacterial biofilms is impeeded2,3.

UAW debridement, dental



UAW debridement, leg wound – sterile in the surgical theater



UAW debridement, leg wound



UAW debridement, leg wound



Highlights

  • effective removal of devitalized tissue 4,5
  • preservation of healthy tissue 4,5
  • creation of a clean, viable wound bed 2,3,4,5
  • disrupting of biofilms 1
  • prevention of biofilm reformation 2,3

References

1 Geisler Crone, S., Garde, C., Bjarnsholt, T., Alhede, M.: A novel in vitro wound biofilm model used to evaluate low-frequency ultrasonic-assisted wound debridement. Journal of Wound Care 2015; 24:2, 64-72.
2 Yarets Y, Rubanov L, Shevchenko N. The biofilm-forming capacity of staphylococcus aureus from chronic wounds can be used for determining Wound-Bed Preparation methods. EWMA Journal 2013; 13(1):7-13
3 Yarets Y. Clinical experiences with Ultrasonic-Assisted Wound Debridement (UAW) used for wound bed preparation before skin grafting. Abstract for oral presentation at the free paper session: Infection and Antimicrobials, EWMA conference, May 13-15, 2015; London, UK
4 Herberger K, Franzke N, Blome C, Kirsten N, Augustin M.: Efficacy, tolerability and patient benefit of ultrasound-assisted wound treatment versus
surgical debridement: a randomized clinical study, Dermatology. 2011; 222(3):244-9.
5 Lázaro-Martinéz JL et al. Preliminary case series results evaluating Ultrasonic-Assisted Wound Debridement (UAW) for treatment of complicated diabetic foot ulcers (DFU). Poster presentation, ISDF conference, May 20-23, 2015; The Hague, Netherlands
6 Tested with a PHMB concentration of 0.04% (cf. with Ref. 1)

Cavitation Effect
Ultrasonic technology in wound debridement





The UAW instrument generates cavitation bubbles that implode due to pressure changes and generate strong sonic shock waves, so-called microjets, which remove revitalized tissue and disrupt the biofilm.

Cavitation Effect

Söring’s Ultrasonic-Assisted Wound Debridement uses the cavitation effect. The ultrasonic vibrations of the UAW instrument generate cavitation bubbles in the irrigation solution. Those bubbles implode due to pressure changes and generate strong sonic shock waves, so-called microjets.

Healthy Tissue is hardly affected.

Devitalized tissue and foreign bodies are removed from the wound bed, and biofilms are disrupted. Healthy tissue is hardly affected due to its higher elastin content, so the healing process can proceed rapidly.



Indications

Acute and chronic wounds

  • Ulcers
  • Hypergranulation tissue
  • post-operative wounds
  • trauma wounds
  • infected wounds



Case Stories

Wound debridement – what is needed?







Ultrasonic-assisted bone instrument

Precise on bone, gentle on critical structures

The ultrasonic-assisted bone instrument from Söring was explicitly developed for the resection of bone and offers numerous advantages in spinal surgery, e. g. for decompression procedures. The non-rotating technology allows an exact and delicate approach so that the surgeon can work closely with critical spinal neurovascular structures such as the dura mater. Additional pressure is avoided, which is extremely important when working in already tight spaces. Due to the longitudinal movement of the sonotrode tip, there is also no risk of “grabbing.”

Another great advantage compared to other instruments is that bone can be removed in individual pieces, as it is not ground. Thus, the removed material can be used further for fusion operations. Thereby artificial bone material or bone graft harvesting can be avoided.

Highlights

  • high quality sonotrodes
  • various sonotrode geometries
  • simple, intuitive assembly

Highlights

  • a fully autoclavable instrument body
  • low instrument weight
  • a clear view of the surgical field thanks to ergonomic design
  • integrated irrigation system

Different sonotrodes for an individual procedure

The surgeon can choose between two sonotrode shapes and lengths and optimize the instrument regarding indication, procedure, and access route.

Knife sonotrode

The blade-shaped sonotrode cuts out vital bone pieces precisely and with a straight-cut surface.

  • Longitudinal ultrasonic oscillations (35,000 times per second)



Rasp sonotrode

The rasp-shaped sonotrode is used for precise bone ablation.

  • Longitudinal ultrasonic oscillations (35,000 times per second) in combination with torsional motion



What is needed?



  • single use sonotrode (rasp or knife)
  • reusable bone instrument
  • ultrasonic generator SONOCA 185 or SONOCA 300 and accessories



Principle of ultrasonic technology in spinal surgery

The ultrasonic oscillations of the sonotrode tip and the manual movement of the bone instrument allow precise and controlled cutting through bone and targeted bone removal. Elastic structures are significantly more resistant to ultrasonic oscillations. Since they can adapt to the oscillations, they remain intact in the event of contact with the sonotrode tip.





Indications for ultrasonic spine surgery

  • resection of osteophytes
  • (anterior) cervical decompression
  • anterior cervical foraminotomy
  • uncoforaminotomy
  • foraminotomy
  • laminotomy
  • laminectomy
  • laminoplasty
  • lumbar decompression
  • accesses for fusions
  • removal of vital bone fragments for fusion operations
